Phymetrix Moisture Measurement Innovation at Work
7 Years
| Ask Lasest Price | |
| Brand Name : | PhyMetrix |
| Model Number : | POA200 |
| Payment Terms : | T/T |
| Delivery Time : | 1-2Weeks |

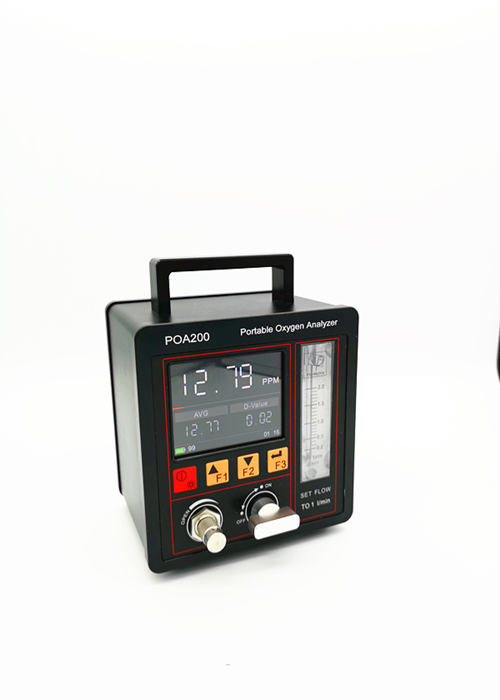

Portable Model , Trace O2 Analyzer , IP68 Stainless Steel Housing , Rechargeable Battery
| Performance | Operating Conditions | ||
| Measurement Ranges | 0-10ppm,0-100ppm,0-1000ppm,0-1% | Operating Humidity | Less than 95%(Non-Condensing) |
| Resolution | 0.01ppm | Operating Temp | 0℃ to +45 ℃ |
| Response Time | <10s(100ppm-1%) <25s(0-10ppm) | Inlet Gas Pressure | 0.5-30psig |
| Repeatability | +/-0.5% FS | Flow Rate | <1 LPM |
| Electrial Specifications | Mechanical Specifications | ||
| Display | 3.5”LCD,320*240 Screen Resolution | Protection | Intnsically Safe,Class 1,Div 1 Group B,C,D |
| Battery | Li-ion rechargeable,8 hours on full charge | Dimensions | Height:7.08” Width:5.60” Depth:5.75” |
| Input Charge Voltage | 115/230VAC | Weight | 2.85KG |
General Description
Design Simplicity & Ease of Use The POA 200 is designed for ease of use, Incorporating all the features needed to make installation and operation as simple as possible. Engineered with leading industry experts, this instrument is fully configured and calibrated that can be instantly incorporated into field service.
The on-site connections can be easily made with the supplied Quick-Disconnect fittings, readily taking samples in your service locations. An on-off by pass valve will make sure the sensor is in an air tight chamber and stabilizing for the next measurement.
|
|
