Phymetrix Moisture Measurement Innovation at Work
7 Years
| Ask Lasest Price | |
| Brand Name : | PhyMetrix |

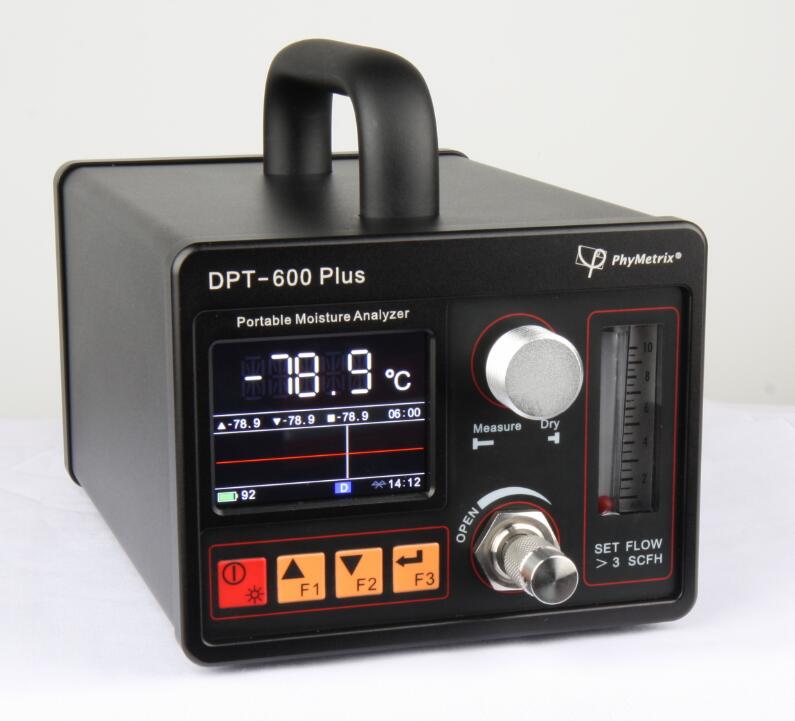

| Model Number : | DPT-600Plus |
| Payment Terms : | T/T |
| Delivery Time : | 5-8 working days |
Intnsically Safe,Class 1,Div 1 Group B,C,D , Portable Moisture Analyzer , Inlet Gas Pressure 150psig
Applications
Petrochemical
Industrial Gases
Natural Gas
Power Generation
Air Dryers
Specifications:
| Performance | Operating Conditions | ||
| Measurement Ranges | -110℃ -+20℃ DP -60℃-+20℃ DP | Operating Humidity | Less than 95%(Non-Condensing) |
| Resolution | 0.1℃ DP | Operating Temp | -20℃ to +60 ℃ |
| Response Time | 95% of step change in 5 mins | Inlet Gas Pressure | 150psig |
| Repeatability | +/-0.5℃ DP | Flow Rate | >1 LPM |
| Electrial Specifications | Mechanical Specifications | ||
| Display | 2.5”LCD,320*240 Screen Resolution | Protection | Intnsically Safe,Class 1,Div 1 Group B,C,D |
| Battery | Li-ion rechargeable,8 hours on full charge | Dimensions | Height:5.51” Width:5.04” Depth:8.42” |
| Input Charge Voltage | 115/230VAC | Weight | 2.6KG |
|
|
