Phymetrix Moisture Measurement Innovation at Work
7 Years
| Ask Lasest Price | |
| Brand Name : | PhyMetrix |
| Model Number : | POA-300 |
| Payment Terms : | T/T, |
| Delivery Time : | 1-2weeks |

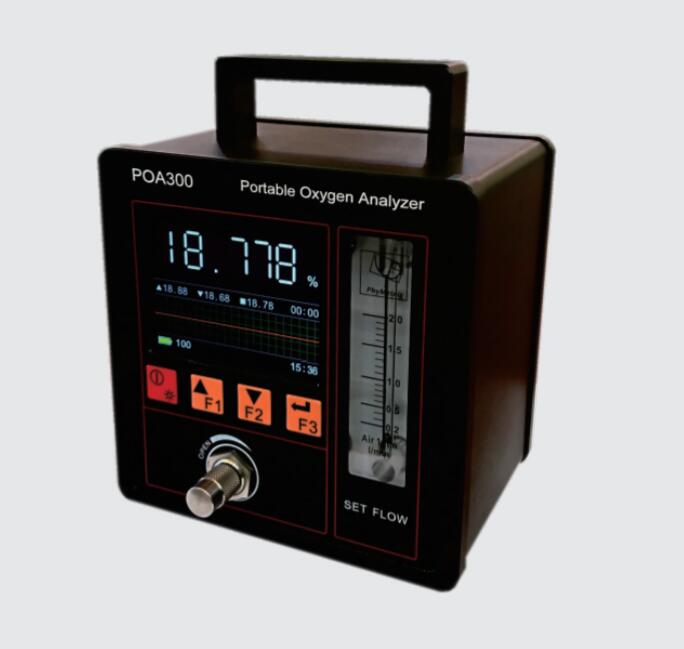

Portable O2 Analyzer , Oxygen Gas Analyzer , Oxygen Analysis
Highlights
From 0-1% ,0-5%,0-10%,0-25%,0-100% measurement Range
Portable & Lightweight design
IP68 Stainless Steel Housing
NIST Calibrations
Fast , Accurate & Repeatable
Applications
Petrochemical
Industrial Gases
Natural Gas
Power Generation
Technical Specifications
| Performance | Operating Conditions | ||
| Measurement Ranges | 0-1% ,0-5%,0-10%,0-25%,0-100% | Operating Humidity | Less than 95%(Non-Condensing) |
| Resolution | 0.001% | Operating Temp | 0℃ to +45 ℃ |
| Repeatability | +/-1% FS | Flow Rate | <1 LPM |
| Electrial Specifications | Mechanical Specifications | ||
| Display | 3.5”LCD,320*240 Screen Resolution | Protection | Intnsically Safe,Class 1,Div 1 Group B,C,D |
| Battery | Li-ion rechargeable,8 hours on full charge | Dimensions | Height:180mm Width:142mm Depth:146mm |
| Input Charge Voltage | 100-240VAC,50/60HZ,0.3A,25~34VA output 5.35VDC,2.0A USB Type C connector | Weight | 2.2KG |
|
|
